BLUE – Durable All-Round

Coating in Interference Colours.

Based on AlCr, BLUE coatings from the TRONIX series convince not only with their unique interference colours but also with exceptional hardness, stability and wear resistance. BLUE distinguishes itself with improved surface quality and is highly suitable for milling and drilling, the machining of steel from 35 to > 54 HRc and the machining of stainless steel.

BLUE – Durable All-Round

Coating in Interference Colours.

Based on AlCr, BLUE coatings from the TRONIX series convince not only with their unique interference colours but also with exceptional hardness, stability and wear resistance. BLUE distinguishes itself with improved surface quality and is highly suitable for milling and drilling, the machining of steel from 35 to > 54 HRc and the machining of stainless steel.

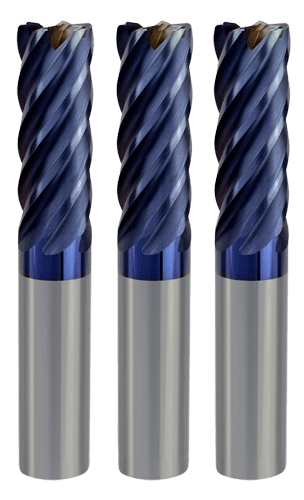

PVD coating interference colours BLUE by Eifeler Austria

BLUE – AlCr Based Performance Parameters.

BLUE – AlCr Based Performance Parameters.

Hardness

3.400

Maximum working temperature

1.000 °C / 1.830 °F

Friction coefficient against steel

0,3

Coating thickness

1 – 4 µm

Colour

blue-purple

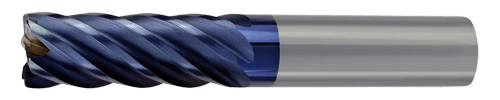

Eifeler PVD coatings interference colours BLUE

BLUE – Preferred Areas of Application

  • High-performance coat for multi-purpose applications
  • Steel from 35 to > 54 HRc
  • Stainless steel

High-Performance Coat for Multi-Purpose Applications

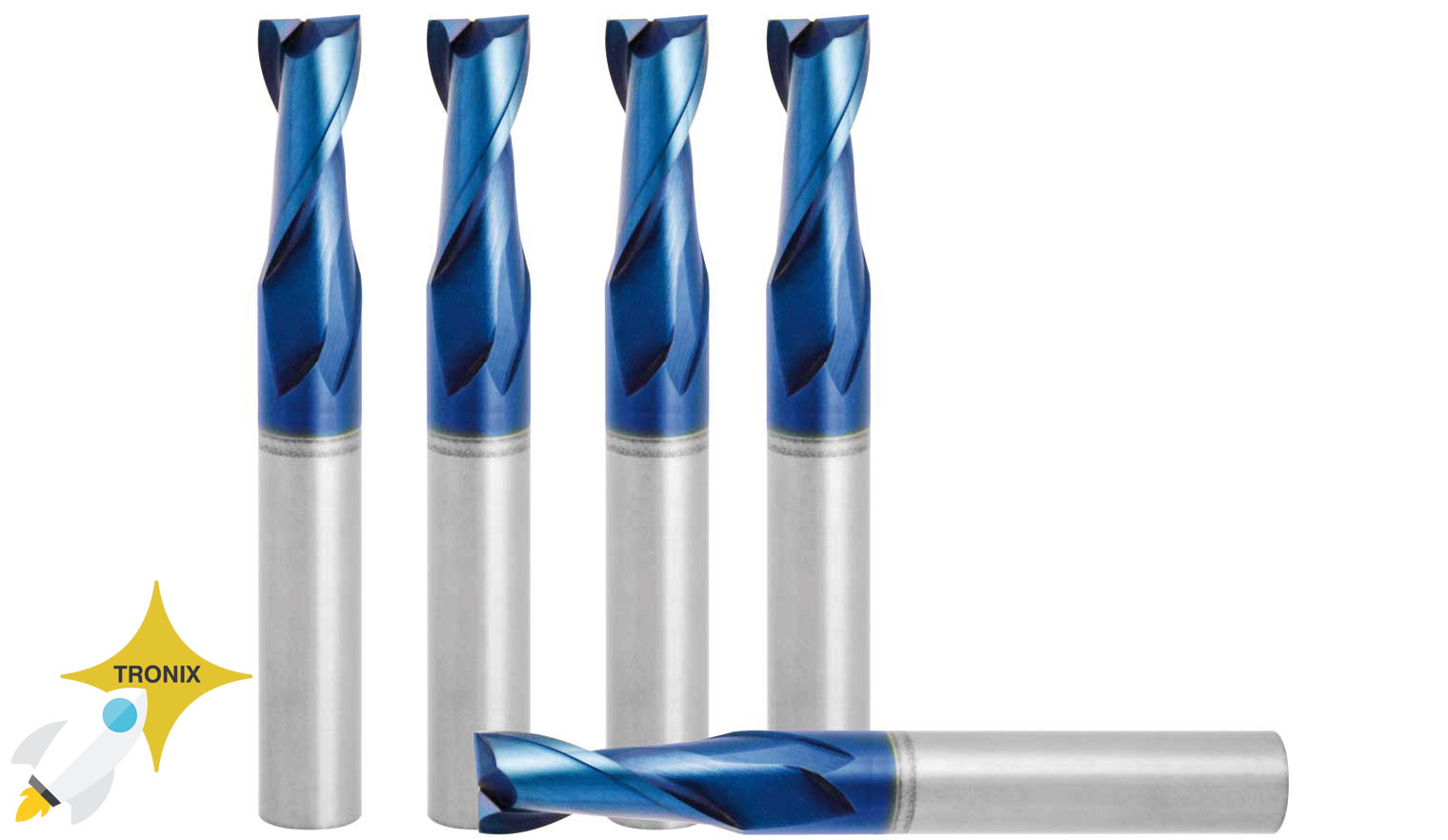

As part of the TRONIX series BLUE is deposited in the PVD hybrid coating system (HIPIES). In this process, a new high-performance coat for multi-purpose applications is applied to a shimmering blue base coat.

Interference Colours With Rainbow Effect: Visual Refinement and a Distinctive Feature

Thanks to its appealing blue colour and universal applicability at high performance, BLUE is also suited for the field of visual refinement. Furthermore, shimmering top coats in interference colours as provided by BLUE are commonly used as a distinctive feature on various parts, tools and components.

Is BLUE the right coating for your area of application? Or would one of our numerous other hard coatings be even better suited for your individual requirements?

Which coating system is the perfect match? We will gladly advise you!
