ZrN – Top Performance in the

Machining of
Aluminium.

The zirconium nitride coating ZrN excels through excellent corrosion and wear resistance. It is bio-compatible, extremely tough and highly resistant against abrasive wear. Its favourable tribological properties, together with its attractive light yellow colour, make ZrN a preferred coating system – also for decorative applications.

ZrN – Top Performance in the

Machining of Aluminium.

The zirconium nitride coating ZrN excels through excellent corrosion and wear resistance. It is bio-compatible, extremely tough and highly resistant against abrasive wear. Its favourable tribological properties, together with its attractive light yellow colour, make ZrN a preferred coating system – also for decorative applications.

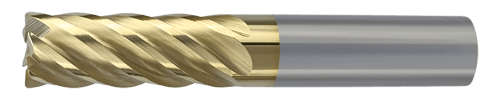

corrosion protection with Eifeler PVD coating ZrN

ZrN – Zirconium Nitride Performance Parameters.

ZrN – Zirconium Nitride Performance Parameters.

Hardness

2.800 ± 300 HV

Maximum working temperature

600 °C / 1.110 °F

Friction coefficient against steel

0,5

Coating thickness

1 – 4 µm

Colour

light yellow

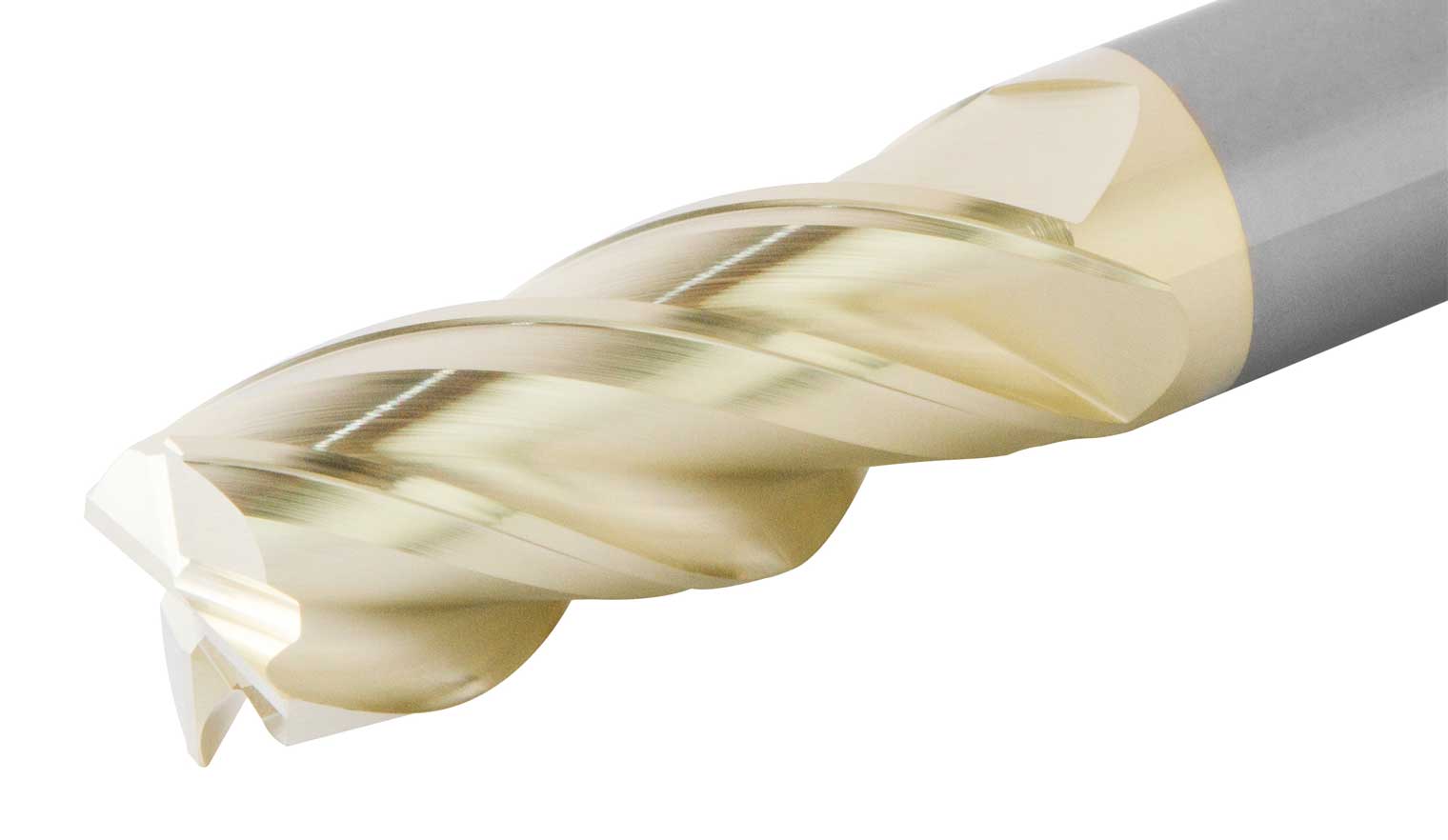

Eifeler corrosion protection PVD coating ZrN

ZrN – Preferred Areas of Application

  • Machining of aluminium alloys and non-ferrous metals
  • Machining of aluminium with Si content < 10%
  • Titanium machining
  • Prozessing of fibre glass, nylon and polymer materials
  • Medical technology

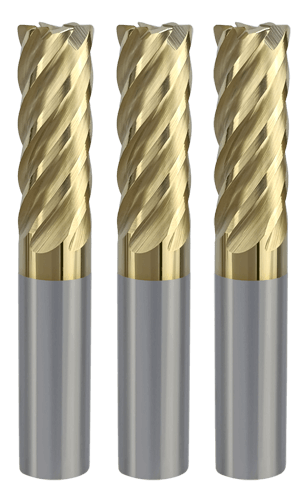

For Aluminium Alloys, Fibre Glass, Nylon …

ZrN coatings are popularly employed in machining, especially that of aluminium alloys and titanium. Furthermore, they are a good choice for the machining of non-ferrous metals. Using ZrN coats can also be recommended for the processing of fibre glass, nylon and the majority of polymer materials.

Bio-Compatible and Ideal on Medical Components

ZrN coats meet all requirements when it comes to bio-compatibility. Thanks to their high levels of corrosion resistance and chemical stability, they are very well suited for the use in medical technology as well as for the coatings of medical components. Furthermore, they protect against abrasive and adhesive wear.

Reduced Galling

ZrN coating is also used in the field of punching and metal forming: Especially for all those applications in which coating with TiN would result in galling.

Is ZrN the right coating for your area of application? Or would one of our numerous other hard coatings be even better suited for your individual requirements?

Which coating system is the perfect match? We will gladly advise you!
