SUPRAL
The Universal Multi-Layer Coat.
Based on TiAlN, SUPRAL coatings are regarded as THE multi-purpose high-performance coatings from Eifeler – suited for drills, millers and other tools. SUPRAL convinces with high oxidation resistance, exceptional hardness and good chemical resistance. Furthermore, this PVD coating excels with a low friction coefficient.
SUPRAL
The Universal Multi-Layer Coat.
Based on TiAlN, SUPRAL coatings are regarded as THE multi-purpose high-performance coatings from Eifeler – suited for drills, millers and other tools. SUPRAL convinces with high oxidation resistance, exceptional hardness and good chemical resistance. Furthermore, this PVD coating excels with a low friction coefficient.
SUPRAL – TiAIN Performance Parameters.
SUPRAL – TiAIN Performance Parameters.
Hardness
3.500 ± 500 HV
Maximum working temperature
800 °C / 1.470 °F
Friction coefficient against steel
< 0,5
Coating thickness
2 – 4 µm
Colour
black
SUPRAL – Preferred Areas of Application
- Drilling and milling of 54 HRc steel
- Cast machining

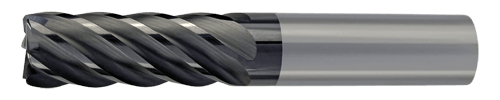

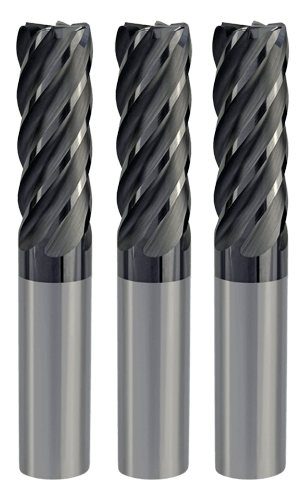

Excellent for Drills, Millers and Co …

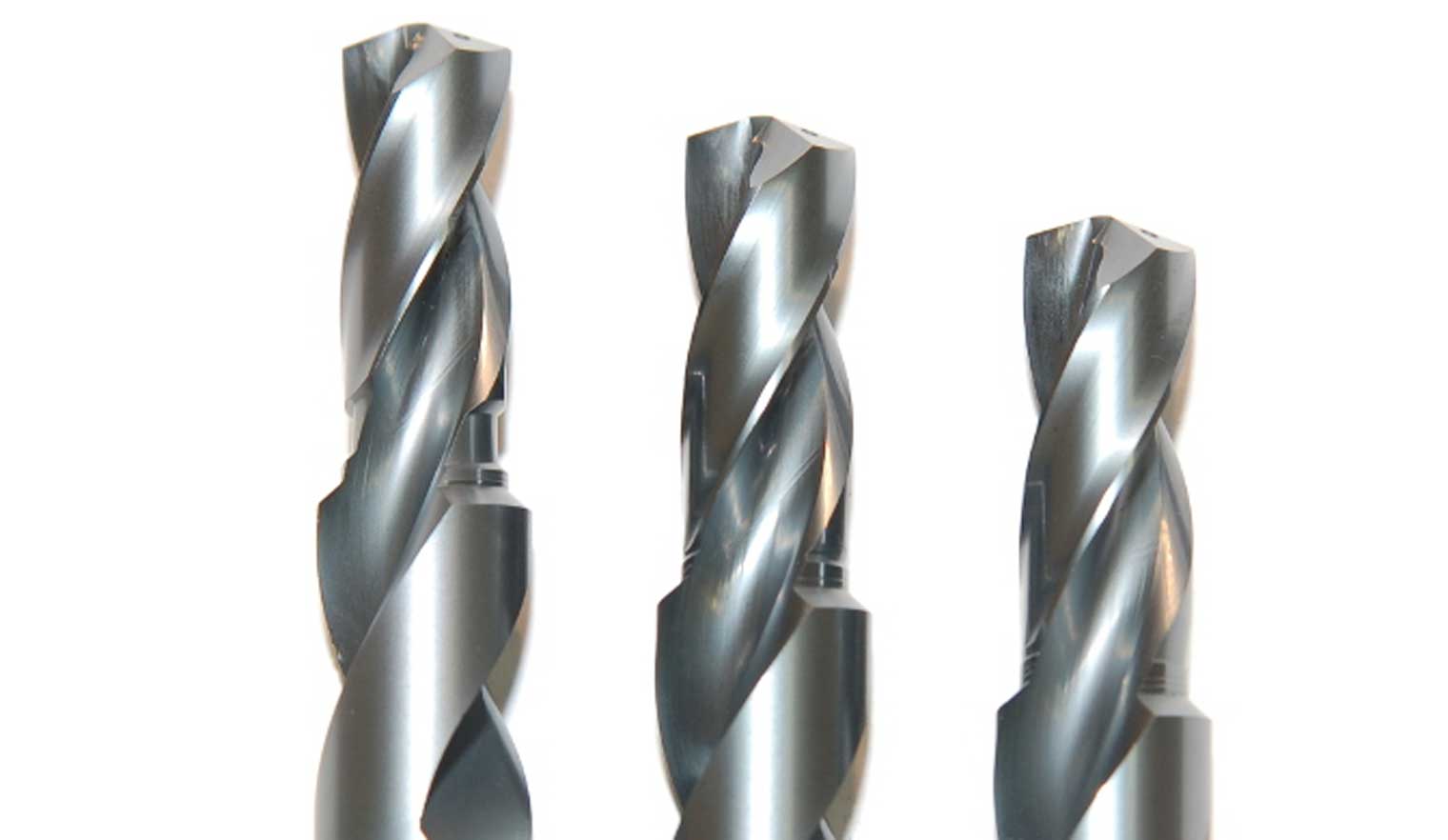

Its thermal stability and low friction coefficient allow SUPRAL coatings to achieve excellent results, especially in the drilling of steel (up to 54 HRc). Drills, millers and other tools show improved surface quality and increased endurance. Furthermore, one can realise higher cutting speeds through the application of this coating. Further advantages are the possibility of dry machining and a reduction in cooling lubricant.
Broad Range of Application in Machining
SUPRAL is particularly suited for drilling with poor cooling or interior cooling while showing excellent results in die cast machining.
Is SUPRAL the right coating for your area of application? Or would one of our numerous other hard coatings be even better suited for your individual requirements?
Which coating system is the perfect match? We will gladly advise you!
