DUMATIC – Maximum Hardness and

Abrasion Resistance for Forming.

Our DUMATIC coating, the top-of-the-line solution for metal forming, is always manufactured as a DUPLEX variant using a plasma diffusion process on the base material.The PVD-deposited multilayer structure with a high TiC content (approx. 4,000 HV!) ensures maximum hardness, excellent wear resistance and a smooth, low-friction surface. Deposition at a process temperature of around 450 °C results in a distortion-free, adhesive layer that is also ideally suited for polished tools.

DUMATIC – Maximum Hardness and

Abrasion Resistance for Forming.

Our DUMATIC coating, the top-of-the-line solution for metal forming, is always manufactured as a DUPLEX variant using a plasma diffusion process on the base material.The PVD-deposited multilayer structure with a high TiC content (approx. 4,000 HV!) ensures maximum hardness, excellent wear resistance and a smooth, low-friction surface. Deposition at a process temperature of around 450 °C results in a distortion-free, adhesive layer that is also ideally suited for polished tools.

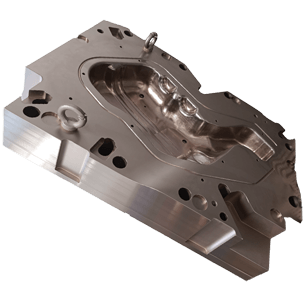

Maximum hardness and abrasion resistance - coating DUMATIC by Eifeler Austria

DUMATIC – Multilayer Structure Performance Parameters.

DUMATIC – Multilayer Structure Performance Parara­meters.

Hardness

3.700 ± 500 HV

Maximum working temperature

400 °C

Friction coefficient ageinst steel

0,25

Coating thickness

3 – 5 µm

Colour

reddish-grey

Very high hardness for forming - Eifeler PVD coating DUMATIC

DUMATIC – Preferred Areas of Application

  • Drawing, stamping, pressing & forming tools
  • For high-alloy chronium/nickel materials
  • Cold forming
  • Cutting of high-strength sheets metals
  • Cold forming

    Benefits and Properties of DUMATIC

    • Very high hardness (up to 3.700 HV)
    • Extremely high abrasion resistance
    • Low tendency for cold welling with high-alloy stainless steel qualities
    • Suitable for high surface pressures
    • Stable layer structure
    • Very good adhesion
    • Polished surfaces are not roughened
    • Low oxidation resistance
    • Not suitable for higher contact temperatures, e.g., semi-hot forming

    Is DUMATIC the right coating for your area of application? Or would one of our numerous other hard coatings be even better suited for your individual requirements?

    Which coating system is the perfect match? We will gladly advise you!

    Just contact us.
